In this video lesson we show how to calibrate a QMC5883L 3-Axis magnetometer using python and PyQt5. The program presents the user with a visual representation of the magnetic vector, allowing more precise calibration of the sensors. We are using the GY-87 module, and it is connected like this:

MPU6050 — Schematic for connecting the GY-87 module to the Arduino

This is the simple code on the Arduino side, sending the raw magnetometer data:

#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
#include <Wire.h>
#include <QMC5883LCompass.h>
int x,y,z;
Adafruit_MPU6050 mpu;
QMC5883LCompass compass;
void setup() {
Serial.begin(115200);
mpu.begin();
mpu.setI2CBypass(true);
compass.init();
}
void loop() {
 compass.read();
 x = compass.getX();
 y = compass.getY();
 z = compass.getZ();
Serial.print(x);
Serial.print(',');
Serial.print(y);
Serial.print(',');
Serial.println(z);
 delay(100);
}

#include <Adafruit_MPU6050.h>

#include <Adafruit_Sensor.h>

#include <Wire.h>

#include <QMC5883LCompass.h>

int x,y,z;

Adafruit_MPU6050 mpu;

QMC5883LCompass compass;

void setup() {

Serial.begin(115200);

mpu.begin();

mpu.setI2CBypass(true);

compass.init();

}

void loop() {

compass.read();

x = compass.getX();

y = compass.getY();

z = compass.getZ();

Serial.print(x);

Serial.print(',');

Serial.print(y);

Serial.print(',');

Serial.println(z);

delay(100);

}

This is the calibration code, running on the Python side;

import serial
import numpy as np
from PyQt5 import QtWidgets, QtCore
import pyqtgraph as pg
serialPort = 'COM8'
baudRate =115200
to =.1
ser =serial.Serial(serialPort, baudRate, timeout=to)
maxPoints = 2000
xRaw = np.empty(0)
yRaw = np.empty(0)
zRaw = np.empty(0)

xCal = np.empty(0)
yCal = np.empty(0)
zCal = np.empty(0)

calibrated = False
offsets = np.zeros(3)
scales = np.ones(3)

app = QtWidgets.QApplication([])
mainWindow = QtWidgets.QWidget()
mainWindow.setWindowTitle("Magnetometer Calibratioin")
mainLayout =QtWidgets.QVBoxLayout()
mainWindow.setLayout(mainLayout)

statusLabel = QtWidgets.QLabel("Program Running: Not Calibrated")
statusLabel.setAlignment(QtCore.Qt.AlignCenter)
statusLabel.setStyleSheet("color: green; font-weight: bold; font-size: 20px;")
mainLayout.addWidget(statusLabel)

minMaxLabel=QtWidgets.QLabel("Min/Max: N/A")
minMaxLabel.setAlignment(QtCore.Qt.AlignCenter)
minMaxLabel.setStyleSheet("color: green; font-weight: bold; font-size: 16px;")
mainLayout.addWidget(minMaxLabel)

calibrateButton = QtWidgets.QPushButton("Start Calibration")
calibrateButton.setCheckable(True)
mainLayout.addWidget(calibrateButton)


plotLayout =QtWidgets.QGridLayout()
mainLayout.addLayout(plotLayout)
xyPlot = pg.PlotWidget(title="XY Plane")
yzPlot = pg.PlotWidget(title="YZ Plane")
xzPlot = pg.PlotWidget(title="XZ Plane")
for plot in [xyPlot, yzPlot, xzPlot]:
    plot.setAspectLocked(True)
    plot.showGrid(x=True, y=True)
    plot.setMinimumSize(300,300)
plotLayout.addWidget(xyPlot, 0,0)
plotLayout.addWidget(yzPlot, 0,1)
plotLayout.addWidget(xzPlot, 1,0)

xyScatter = pg.ScatterPlotItem(size=5)
yzScatter = pg.ScatterPlotItem(size=5)
xzScatter = pg.ScatterPlotItem(size=5)

xyPlot.addItem(xyScatter)
yzPlot.addItem(yzScatter)
xzPlot.addItem(xzScatter)

def toggleCalibration():
    global calibrated, xRaw, yRaw, zRaw, xCal, yCal, zCal, offsets, scales

    if calibrateButton.isChecked():
        calibrateButton.setText("Stop Calibration")
        statusLabel.setText("Mode: Calibration")
        statusLabel.setStyleSheet("color: red; font-weight: bold; font-size: 20px;")
        minMaxLabel.setText("Min/Max: collecting . . .")
        minMaxLabel.setStyleSheet("color: red; font-weight: bold; font-size: 16px;")
        calibrated = False
        xRaw = np.empty(0)
        yRaw = np.empty(0)
        zRaw = np.empty(0)
    if not calibrateButton.isChecked():
        calibrateButton.setText("Start Calibration")
        statusLabel.setText("Mode: Calibrated")
        statusLabel.setStyleSheet("color: green; font-weight: bold; font-size: 20px;")

        rawData = np.column_stack((xRaw,yRaw,zRaw))
        minVals = np.min(rawData, axis=0)
        maxVals = np.max(rawData, axis=0)
        offsets = (maxVals + minVals)/2
        scales = 2.0/(maxVals-minVals)
        minMaxLabel.setStyleSheet("color: green; font-weight: bold; font-size: 16px;")
        minMaxLabel.setText("Min(x,y,z: "+str(minVals.round(2))+" Max(x,y,z): "
                            +str(maxVals.round(2))+" Offsets(x,y,z): "+str(offsets.round(2))
                            +"Scales(x,y,z): "+str(scales.round(5)))
        print("Calibration Completed.")
        print("Offsets: ", offsets)
        print("Scales: ", scales)

        xCal = np.empty(0)
        yCal = np.empty(0)
        zCal = np.empty(0)
        calibrated = True

calibrateButton.clicked.connect(toggleCalibration)

def updatePlot():
    global xRaw, yRaw, zRaw, xCal, yCal, zCal
    if ser.in_waiting > 0:
        try:
            line= ser.readline().decode('utf-8').strip()
            values = line.split(',')
            if len(values)==3:
                x = float(values[0])
                y = float(values[1])
                z = float(values[2])
                if not calibrated:
                    xRaw =np.append(xRaw, x)[-maxPoints:]
                    yRaw =np.append(yRaw, y)[-maxPoints:]
                    zRaw =np.append(zRaw, z)[-maxPoints:]
                    xyScatter.setData(x=xRaw, y=yRaw, brush=pg.mkBrush(0,0,255,255))
                    yzScatter.setData(x=yRaw, y=zRaw, brush=pg.mkBrush(0,255,0,255))
                    xzScatter.setData(x=xRaw, y=zRaw, brush=pg.mkBrush(255,0,0,255))

                    if len(xRaw)>10:
                        minVals = np.min(np.column_stack((xRaw,yRaw,zRaw)),axis=0)
                        maxVals = np.max(np.column_stack((xRaw,yRaw,zRaw)),axis=0)

                        minMaxLabel.setStyleSheet("color: red; font-weight: bold; font-size: 16px;")
                        minMaxLabel.setText("Min(x,y,z: "+str(minVals.round(2))+" Max(x,y,z): "
                            +str(maxVals.round(2)))

                if calibrated:
                    xC= (x - offsets[0])*scales[0]
                    yC= (y - offsets[1])*scales[1]
                    zC= (z - offsets[2])*scales[2]

                    xCal = np.append(xCal, xC)[-maxPoints:]
                    yCal = np.append(yCal, yC)[-maxPoints:]
                    zCal = np.append(zCal, zC)[-maxPoints:]

                    xyScatter.setData(x=xCal, y=yCal, brush=pg.mkBrush(0,0,255,120))
                    yzScatter.setData(x=yCal, y=zCal, brush=pg.mkBrush(0,255,0,120))
                    xzScatter.setData(x=xCal, y=zCal, brush=pg.mkBrush(255,0,0,120))

        except Exception as e:
            print("Parse Error: ", e)

plotTimer =QtCore.QTimer()
plotTimer.timeout.connect(updatePlot)
plotTimer.start(50)
mainWindow.show()
try:
    app.exec_()
finally:
    ser.close()

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

import serial

import numpy as np

from PyQt5 import QtWidgets, QtCore

import pyqtgraph as pg

serialPort = 'COM8'

baudRate =115200

to =.1

ser =serial.Serial(serialPort, baudRate, timeout=to)

maxPoints = 2000

xRaw = np.empty(0)

yRaw = np.empty(0)

zRaw = np.empty(0)

xCal = np.empty(0)

yCal = np.empty(0)

zCal = np.empty(0)

calibrated = False

offsets = np.zeros(3)

scales = np.ones(3)

app = QtWidgets.QApplication([])

mainWindow = QtWidgets.QWidget()

mainWindow.setWindowTitle("Magnetometer Calibratioin")

mainLayout =QtWidgets.QVBoxLayout()

mainWindow.setLayout(mainLayout)

statusLabel = QtWidgets.QLabel("Program Running: Not Calibrated")

statusLabel.setAlignment(QtCore.Qt.AlignCenter)

statusLabel.setStyleSheet("color: green; font-weight: bold; font-size: 20px;")

mainLayout.addWidget(statusLabel)

minMaxLabel=QtWidgets.QLabel("Min/Max: N/A")

minMaxLabel.setAlignment(QtCore.Qt.AlignCenter)

minMaxLabel.setStyleSheet("color: green; font-weight: bold; font-size: 16px;")

mainLayout.addWidget(minMaxLabel)

calibrateButton = QtWidgets.QPushButton("Start Calibration")

calibrateButton.setCheckable(True)

mainLayout.addWidget(calibrateButton)

plotLayout =QtWidgets.QGridLayout()

mainLayout.addLayout(plotLayout)

xyPlot = pg.PlotWidget(title="XY Plane")

yzPlot = pg.PlotWidget(title="YZ Plane")

xzPlot = pg.PlotWidget(title="XZ Plane")

for plot in [xyPlot, yzPlot, xzPlot]:

plot.setAspectLocked(True)

plot.showGrid(x=True, y=True)

plot.setMinimumSize(300,300)

plotLayout.addWidget(xyPlot, 0,0)

plotLayout.addWidget(yzPlot, 0,1)

plotLayout.addWidget(xzPlot, 1,0)

xyScatter = pg.ScatterPlotItem(size=5)

yzScatter = pg.ScatterPlotItem(size=5)

xzScatter = pg.ScatterPlotItem(size=5)

xyPlot.addItem(xyScatter)

yzPlot.addItem(yzScatter)

xzPlot.addItem(xzScatter)

def toggleCalibration():

global calibrated, xRaw, yRaw, zRaw, xCal, yCal, zCal, offsets, scales

if calibrateButton.isChecked():

calibrateButton.setText("Stop Calibration")

statusLabel.setText("Mode: Calibration")

statusLabel.setStyleSheet("color: red; font-weight: bold; font-size: 20px;")

minMaxLabel.setText("Min/Max: collecting . . .")

minMaxLabel.setStyleSheet("color: red; font-weight: bold; font-size: 16px;")

calibrated = False

xRaw = np.empty(0)

yRaw = np.empty(0)

zRaw = np.empty(0)

if not calibrateButton.isChecked():

calibrateButton.setText("Start Calibration")

statusLabel.setText("Mode: Calibrated")

statusLabel.setStyleSheet("color: green; font-weight: bold; font-size: 20px;")

rawData = np.column_stack((xRaw,yRaw,zRaw))

minVals = np.min(rawData, axis=0)

maxVals = np.max(rawData, axis=0)

offsets = (maxVals + minVals)/2

scales = 2.0/(maxVals-minVals)

minMaxLabel.setStyleSheet("color: green; font-weight: bold; font-size: 16px;")

minMaxLabel.setText("Min(x,y,z: "+str(minVals.round(2))+" Max(x,y,z): "

+str(maxVals.round(2))+" Offsets(x,y,z): "+str(offsets.round(2))

+"Scales(x,y,z): "+str(scales.round(5)))

print("Calibration Completed.")

print("Offsets: ", offsets)

print("Scales: ", scales)

xCal = np.empty(0)

yCal = np.empty(0)

zCal = np.empty(0)

calibrated = True

calibrateButton.clicked.connect(toggleCalibration)

def updatePlot():

global xRaw, yRaw, zRaw, xCal, yCal, zCal

if ser.in_waiting > 0:

try:

line= ser.readline().decode('utf-8').strip()

values = line.split(',')

if len(values)==3:

x = float(values[0])

y = float(values[1])

z = float(values[2])

if not calibrated:

xRaw =np.append(xRaw, x)[-maxPoints:]

yRaw =np.append(yRaw, y)[-maxPoints:]

zRaw =np.append(zRaw, z)[-maxPoints:]

xyScatter.setData(x=xRaw, y=yRaw, brush=pg.mkBrush(0,0,255,255))

yzScatter.setData(x=yRaw, y=zRaw, brush=pg.mkBrush(0,255,0,255))

xzScatter.setData(x=xRaw, y=zRaw, brush=pg.mkBrush(255,0,0,255))

if len(xRaw)>10:

minVals = np.min(np.column_stack((xRaw,yRaw,zRaw)),axis=0)

maxVals = np.max(np.column_stack((xRaw,yRaw,zRaw)),axis=0)

minMaxLabel.setStyleSheet("color: red; font-weight: bold; font-size: 16px;")

minMaxLabel.setText("Min(x,y,z: "+str(minVals.round(2))+" Max(x,y,z): "

+str(maxVals.round(2)))

if calibrated:

xC= (x - offsets[0])*scales[0]

yC= (y - offsets[1])*scales[1]

zC= (z - offsets[2])*scales[2]

xCal = np.append(xCal, xC)[-maxPoints:]

yCal = np.append(yCal, yC)[-maxPoints:]

zCal = np.append(zCal, zC)[-maxPoints:]

xyScatter.setData(x=xCal, y=yCal, brush=pg.mkBrush(0,0,255,120))

yzScatter.setData(x=yCal, y=zCal, brush=pg.mkBrush(0,255,0,120))

xzScatter.setData(x=xCal, y=zCal, brush=pg.mkBrush(255,0,0,120))

except Exception as e:

print("Parse Error: ", e)

plotTimer =QtCore.QTimer()

plotTimer.timeout.connect(updatePlot)

plotTimer.start(50)

mainWindow.show()

try:

app.exec_()

finally:

ser.close()

Python, Raspberry Pi Pico

Python Program to Calculate Distance and Heading Between Two GPS Points Using Haversine Formula

September 2, 2025 admin

In this video lesson we will develop a python program to calculate the distance and heading between any two GPs positions on earth. The equations we will be coding up are below:

The code which we developed is:

import math
earthRadius = 6371000

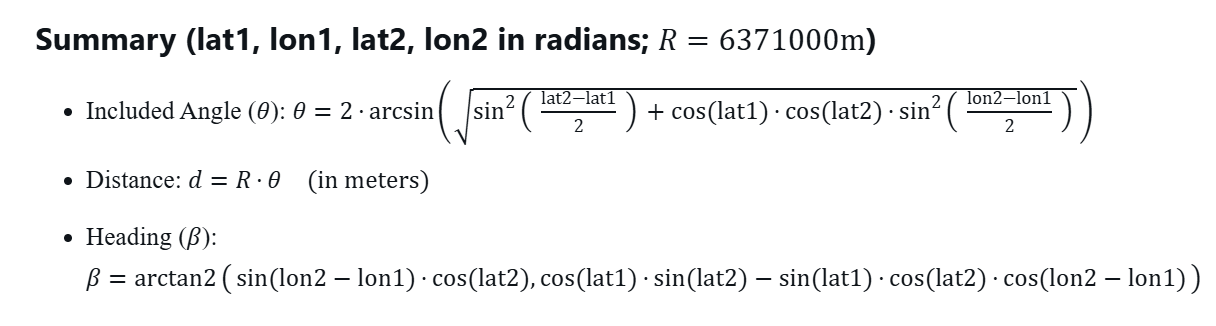

def calculateDistance(lat1,lon1,lat2,lon2):
    lat1=lat1*2*math.pi/360
    lon1=lon1*2*math.pi/360
    lat2=lat2*2*math.pi/360
    lon2=lon2*2*math.pi/360
    theta = 2*math.asin(math.sqrt(
        math.sin((lat2-lat1)/2)**2 +
        math.cos(lat1)*math.cos(lat2)*math.sin((lon2-lon1)/2)**2
        ))
    distance = earthRadius * theta
    return distance
def calculateHeading(lat1,lon1,lat2,lon2):
    lat1=lat1*2*math.pi/360
    lon1=lon1*2*math.pi/360
    lat2=lat2*2*math.pi/360
    lon2=lon2*2*math.pi/360
    deltaLon=lon2-lon1
    xC=math.sin(deltaLon)*math.cos(lat2)
    yC=math.cos(lat1)*math.sin(lat2)-math.sin(lat1)*math.cos(lat2)*math.cos(deltaLon)
    beta = math.atan2(xC,yC)
    betaDeg = beta*360/2/math.pi
    return betaDeg

print("Enter Coordinates in Degrees")
lat1= float(input("lat1? "))
lon1= float(input("lon1? "))
lat2= float(input("lat2? "))
lon2= float(input("lon2? "))

distance = calculateDistance(lat1,lon1,lat2,lon2)
heading = calculateHeading(lat1,lon1,lat2,lon2)
print("REPORT: ")
print("Distance = ",distance)
print("Heading = ",heading)

import math

earthRadius = 6371000

def calculateDistance(lat1,lon1,lat2,lon2):

lat1=lat1*2*math.pi/360

lon1=lon1*2*math.pi/360

lat2=lat2*2*math.pi/360

lon2=lon2*2*math.pi/360

theta = 2*math.asin(math.sqrt(

math.sin((lat2-lat1)/2)**2 +

math.cos(lat1)*math.cos(lat2)*math.sin((lon2-lon1)/2)**2

))

distance = earthRadius * theta

return distance

def calculateHeading(lat1,lon1,lat2,lon2):

lat1=lat1*2*math.pi/360

lon1=lon1*2*math.pi/360

lat2=lat2*2*math.pi/360

lon2=lon2*2*math.pi/360

deltaLon=lon2-lon1

xC=math.sin(deltaLon)*math.cos(lat2)

yC=math.cos(lat1)*math.sin(lat2)-math.sin(lat1)*math.cos(lat2)*math.cos(deltaLon)

beta = math.atan2(xC,yC)

betaDeg = beta*360/2/math.pi

return betaDeg

print("Enter Coordinates in Degrees")

lat1= float(input("lat1? "))

lon1= float(input("lon1? "))

lat2= float(input("lat2? "))

lon2= float(input("lon2? "))

distance = calculateDistance(lat1,lon1,lat2,lon2)

heading = calculateHeading(lat1,lon1,lat2,lon2)

print("REPORT: ")

print("Distance = ",distance)

print("Heading = ",heading)

Arduino

Calculating Roll, Pitch and Yaw from Gyros on Our Arduino MPU6050 IMU Project

August 28, 2025 admin

In this video lesson we will examine how we can calculate Roll, Pitch and Yaw from the MPU6050 IMU. For this lesson we calculate from just the Gyro measurements.

Below is the code which we developed in this lesson:

#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
#include <Wire.h>
float Ax;
float Ay;
float Az;

float Gx;
float Gy;
float Gz;

float rollG=0;
float pitchG=0;
float yawG=0;

int tStart = millis();

// If You want Calibrated results, you must rotate
// your board to all possible orientations, and
// record your velues of xMax, xMin, yMax, yMin
// zMax, zMin. I show you how to do that in LESSON
// 79 on my youtube channel. Put in your values and then
// uncomment the code below. Don't use my values, you have
// to measure your own for it to work.

// float xMax= 1.03;
// float xMin= -.97;
// float yMax= .98;
// float yMin= -1.01;
// float zMax=.96 ;
// float zMin= -1.08;

// float xOffset = (xMax+xMin)/2;
// float yOffset = (yMax+yMin)/2;
// float zOffset = (zMax+zMin)/2;

// float xScale = 2/(xMax -xMin);
// float yScale = 2/(yMax - yMin);
// float zScale = 2/(zMax -zMin);

float roll = 0;
float pitch = 0;
float rollRAW;
float pitchRAW;

Adafruit_MPU6050 mpu;

void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
  mpu.begin();
  Serial.println("MPU6050 Started!");
  mpu.setAccelerometerRange(MPU6050_RANGE_2_G);
  mpu.setGyroRange(MPU6050_RANGE_250_DEG);
  mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);

tStart = millis();
}

void loop() {
  // put your main code here, to run repeatedly:
  sensors_event_t a, g, temp;
  mpu.getEvent(&a, &g, &temp);
  Ax = a.acceleration.x / 9.81;
  Ay = a.acceleration.y / 9.81;
  Az = a.acceleration.z / 9.81;

  Gx = g.gyro.x;
  Gy = g.gyro.y;
  Gz = g.gyro.z;

rollG = rollG + (millis() - tStart)/1000. * Gy *360./2./3.14;
pitchG = pitchG + (millis() - tStart)/1000. * Gx *360./2./3.14;
yawG = yawG + (millis() - tStart)/1000. * Gz *360./2./3.14;
tStart = millis();

  //Uncomment these lines of code to do the callibration
  //This will only work if you have measured your max
  //and min values, and put them in at the top of the code
  // Ax = xScale*(Ax-xOffset);
  // Ay = yScale*(Ay-yOffset);
  // Az = zScale*(Az-zOffset);

  pitchRAW = atan2(Ay, sqrt(Az * Az + Ax * Ax)) * 360 / (2 * 3.14);
  rollRAW = atan2(Ax, sqrt(Az * Az + Ay * Ay)) * 360 / (2 * 3.14);

  pitch = .75 * pitch + .25 * pitchRAW;
  roll = .75 * roll + .25 * rollRAW;

  Serial.print("Gx:");
  Serial.print(Gx);
  Serial.print(',');
  Serial.print("Gy:");
  Serial.print(Gy);
  Serial.print(',');
  Serial.print("Gz:");
  Serial.print(Gz);
  Serial.print(',');
  Serial.print("rollG:");
  Serial.print(rollG);
  Serial.print(',');
  Serial.print("pitchG:");
  Serial.print(pitchG);
  Serial.print(',');
  Serial.print("yawG:");
  Serial.print(yawG);
  Serial.print(',');
  Serial.print("UL:");
  Serial.print(45);
  Serial.print(',');
  Serial.print("LL:");
  Serial.println(-45);

  //   Serial.print("Ax:");
  //   Serial.print(Ax);
  //   Serial.print(',');
  //   Serial.print("Ay:");
  //   Serial.print(Ay);
  //   Serial.print(',');
  //     Serial.print("Az:");
  //   Serial.print(Az);
  //   Serial.print(',');
  //  Serial.print("UL:");
  //  Serial.print(1);
  //  Serial.print(',');
  //  Serial.print("LL:");
  //  Serial.println(-1);
  delay(10);
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

#include <Adafruit_MPU6050.h>

#include <Adafruit_Sensor.h>

#include <Wire.h>

float Ax;

float Ay;

float Az;

float Gx;

float Gy;

float Gz;

float rollG=0;

float pitchG=0;

float yawG=0;

int tStart = millis();

// If You want Calibrated results, you must rotate

// your board to all possible orientations, and

// record your velues of xMax, xMin, yMax, yMin

// zMax, zMin. I show you how to do that in LESSON

// 79 on my youtube channel. Put in your values and then

// uncomment the code below. Don't use my values, you have

// to measure your own for it to work.

// float xMax= 1.03;

// float xMin= -.97;

// float yMax= .98;

// float yMin= -1.01;

// float zMax=.96 ;

// float zMin= -1.08;

// float xOffset = (xMax+xMin)/2;

// float yOffset = (yMax+yMin)/2;

// float zOffset = (zMax+zMin)/2;

// float xScale = 2/(xMax -xMin);

// float yScale = 2/(yMax - yMin);

// float zScale = 2/(zMax -zMin);

float roll = 0;

float pitch = 0;

float rollRAW;

float pitchRAW;

Adafruit_MPU6050 mpu;

void setup() {

// put your setup code here, to run once:

Serial.begin(115200);

mpu.begin();

Serial.println("MPU6050 Started!");

mpu.setAccelerometerRange(MPU6050_RANGE_2_G);

mpu.setGyroRange(MPU6050_RANGE_250_DEG);

mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);

tStart = millis();

}

void loop() {

// put your main code here, to run repeatedly:

sensors_event_t a, g, temp;

mpu.getEvent(&a, &g, &temp);

Ax = a.acceleration.x / 9.81;

Ay = a.acceleration.y / 9.81;

Az = a.acceleration.z / 9.81;

Gx = g.gyro.x;

Gy = g.gyro.y;

Gz = g.gyro.z;

rollG = rollG + (millis() - tStart)/1000. * Gy *360./2./3.14;

pitchG = pitchG + (millis() - tStart)/1000. * Gx *360./2./3.14;

yawG = yawG + (millis() - tStart)/1000. * Gz *360./2./3.14;

tStart = millis();

//Uncomment these lines of code to do the callibration

//This will only work if you have measured your max

//and min values, and put them in at the top of the code

// Ax = xScale*(Ax-xOffset);

// Ay = yScale*(Ay-yOffset);

// Az = zScale*(Az-zOffset);

pitchRAW = atan2(Ay, sqrt(Az * Az + Ax * Ax)) * 360 / (2 * 3.14);

rollRAW = atan2(Ax, sqrt(Az * Az + Ay * Ay)) * 360 / (2 * 3.14);

pitch = .75 * pitch + .25 * pitchRAW;

roll = .75 * roll + .25 * rollRAW;

Serial.print("Gx:");

Serial.print(Gx);

Serial.print(',');

Serial.print("Gy:");

Serial.print(Gy);

Serial.print(',');

Serial.print("Gz:");

Serial.print(Gz);

Serial.print(',');

Serial.print("rollG:");

Serial.print(rollG);

Serial.print(',');

Serial.print("pitchG:");

Serial.print(pitchG);

Serial.print(',');

Serial.print("yawG:");

Serial.print(yawG);

Serial.print(',');

Serial.print("UL:");

Serial.print(45);

Serial.print(',');

Serial.print("LL:");

Serial.println(-45);

// Serial.print("Ax:");

// Serial.print(Ax);

// Serial.print(',');

// Serial.print("Ay:");

// Serial.print(Ay);

// Serial.print(',');

// Serial.print("Az:");

// Serial.print(Az);

// Serial.print(',');

// Serial.print("UL:");

// Serial.print(1);

// Serial.print(',');

// Serial.print("LL:");

// Serial.println(-1);

delay(10);

}

Arduino, Tutorial

Using Arduino and MPU6050 to Measure Rotational Velocity with the Gyros

August 21, 2025 admin

In this video lesson I show you how you can measure rotational velocity using the gyroscopes on the MPU6050 IMU module on the GY-87 board.

Below is the code which we develop in this lesson.

#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
#include <Wire.h>
float Ax;
float Ay;
float Az;

float Gx;
float Gy;
float Gz;

// If You want Calibrated results, you must rotate
// your board to all possible orientations, and
// record your velues of xMax, xMin, yMax, yMin
// zMax, zMin. I show you how to do that in LESSON
// 79 on my youtube channel. Put in your values and then
// uncomment the code below. Don't use my values, you have
// to measure your own for it to work.

// float xMax= 1.03;
// float xMin= -.97;
// float yMax= .98;
// float yMin= -1.01;
// float zMax=.96 ;
// float zMin= -1.08;

// float xOffset = (xMax+xMin)/2;
// float yOffset = (yMax+yMin)/2;
// float zOffset = (zMax+zMin)/2;

// float xScale = 2/(xMax -xMin);
// float yScale = 2/(yMax - yMin);
// float zScale = 2/(zMax -zMin);

float roll = 0;
float pitch = 0;
float rollRAW;
float pitchRAW;

Adafruit_MPU6050 mpu;

void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
  mpu.begin();
  Serial.println("MPU6050 Started!");
  mpu.setAccelerometerRange(MPU6050_RANGE_2_G);
  mpu.setGyroRange(MPU6050_RANGE_250_DEG);
  mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);
}

void loop() {
  // put your main code here, to run repeatedly:
  sensors_event_t a, g, temp;
  mpu.getEvent(&a, &g, &temp);
  Ax = a.acceleration.x / 9.81;
  Ay = a.acceleration.y / 9.81;
  Az = a.acceleration.z / 9.81;

  Gx = g.gyro.x;
  Gy = g.gyro.y;
  Gz = g.gyro.z;



  //Uncomment these lines of code to do the callibration
  //This will only work if you have measured your max
  //and min values, and put them in at the top of the code
  // Ax = xScale*(Ax-xOffset);
  // Ay = yScale*(Ay-yOffset);
  // Az = zScale*(Az-zOffset);

  pitchRAW = atan2(Ay, sqrt(Az * Az + Ax * Ax)) * 360 / (2 * 3.14);
  rollRAW = atan2(Ax, sqrt(Az * Az + Ay * Ay)) * 360 / (2 * 3.14);

  pitch = .75 * pitch + .25 * pitchRAW;
  roll = .75 * roll + .25 * rollRAW;

  Serial.print("Gx:");
  Serial.print(Gx);
  Serial.print(',');
  Serial.print("Gy:");
  Serial.print(Gy);
  Serial.print(',');
  Serial.print("Gz:");
  Serial.print(Gz);
  Serial.print(',');
  Serial.print("UL:");
  Serial.print(5);
  Serial.print(',');
  Serial.print("LL:");
  Serial.println(-5);

  //   Serial.print("Ax:");
  //   Serial.print(Ax);
  //   Serial.print(',');
  //   Serial.print("Ay:");
  //   Serial.print(Ay);
  //   Serial.print(',');
  //     Serial.print("Az:");
  //   Serial.print(Az);
  //   Serial.print(',');
  //  Serial.print("UL:");
  //  Serial.print(1);
  //  Serial.print(',');
  //  Serial.print("LL:");
  //  Serial.println(-1);
  delay(10);
}

100

101

102

103

104

105

106

107

108

109

#include <Adafruit_MPU6050.h>

#include <Adafruit_Sensor.h>

#include <Wire.h>

float Ax;

float Ay;

float Az;

float Gx;

float Gy;

float Gz;

// If You want Calibrated results, you must rotate

// your board to all possible orientations, and

// record your velues of xMax, xMin, yMax, yMin

// zMax, zMin. I show you how to do that in LESSON

// 79 on my youtube channel. Put in your values and then

// uncomment the code below. Don't use my values, you have

// to measure your own for it to work.

// float xMax= 1.03;

// float xMin= -.97;

// float yMax= .98;

// float yMin= -1.01;

// float zMax=.96 ;

// float zMin= -1.08;

// float xOffset = (xMax+xMin)/2;

// float yOffset = (yMax+yMin)/2;

// float zOffset = (zMax+zMin)/2;

// float xScale = 2/(xMax -xMin);

// float yScale = 2/(yMax - yMin);

// float zScale = 2/(zMax -zMin);

float roll = 0;

float pitch = 0;

float rollRAW;

float pitchRAW;

Adafruit_MPU6050 mpu;

void setup() {

// put your setup code here, to run once:

Serial.begin(115200);

mpu.begin();

Serial.println("MPU6050 Started!");

mpu.setAccelerometerRange(MPU6050_RANGE_2_G);

mpu.setGyroRange(MPU6050_RANGE_250_DEG);

mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);

}

void loop() {

// put your main code here, to run repeatedly:

sensors_event_t a, g, temp;

mpu.getEvent(&a, &g, &temp);

Ax = a.acceleration.x / 9.81;

Ay = a.acceleration.y / 9.81;

Az = a.acceleration.z / 9.81;

Gx = g.gyro.x;

Gy = g.gyro.y;

Gz = g.gyro.z;

//Uncomment these lines of code to do the callibration

//This will only work if you have measured your max

//and min values, and put them in at the top of the code

// Ax = xScale*(Ax-xOffset);

// Ay = yScale*(Ay-yOffset);

// Az = zScale*(Az-zOffset);

pitchRAW = atan2(Ay, sqrt(Az * Az + Ax * Ax)) * 360 / (2 * 3.14);

rollRAW = atan2(Ax, sqrt(Az * Az + Ay * Ay)) * 360 / (2 * 3.14);

pitch = .75 * pitch + .25 * pitchRAW;

roll = .75 * roll + .25 * rollRAW;

Serial.print("Gx:");

Serial.print(Gx);

Serial.print(',');

Serial.print("Gy:");

Serial.print(Gy);

Serial.print(',');

Serial.print("Gz:");

Serial.print(Gz);

Serial.print(',');

Serial.print("UL:");

Serial.print(5);

Serial.print(',');

Serial.print("LL:");

Serial.println(-5);

// Serial.print("Ax:");

// Serial.print(Ax);

// Serial.print(',');

// Serial.print("Ay:");

// Serial.print(Ay);

// Serial.print(',');

// Serial.print("Az:");

// Serial.print(Az);

// Serial.print(',');

// Serial.print("UL:");

// Serial.print(1);

// Serial.print(',');

// Serial.print("LL:");

// Serial.println(-1);

delay(10);

}

Raspberry Pi Pico

Portable Power for Your Raspberry Pi Pico W Project Using the Sunfounder Breadvolt

August 19, 2025 admin

In this video lesson we show how you can power your GPS tracker project from the Sunfounder Breadvolt power supply (order HERE). As explained in the video, never turn the breadvolt on while the Pi Pico is connected to the USB, as this could backfeed current, and damage your computer. Disconnect the USB from the Pi Pico before turning the breadvolt on. Here is our updated schematic for remote operation.

This is the code we are presently using for the project:

from machine import Pin,I2C,UART
import time
import _thread
from ssd1306 import SSD1306_I2C

utcCorrect = 3

i2c2 = I2C(1, sda=Pin(2), scl=Pin(3), freq=400000)
dsp = SSD1306_I2C(128,64,i2c2)

dataLock = _thread.allocate_lock()
keepRunning = True
GPS = UART(1, baudrate=9600, tx=machine.Pin(8), rx=machine.Pin(9))
# Reset GPS
GPS.write(b'$PMTK314,-1*04\r\n')
#The following line ensures that the GPS reports the GPVTG NMEA Sentence
GPS.write(b"$PMTK314,0,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0*28\r\n")
NMEAdata = {
    'GPGGA' : "",
    'GPGSA' : "",
    'GPRMC' : "",
    'GPVTG' : ""
    }
GPSdata = {
    'latDD' 	: 0,
    'lonDD'		: 0,
    'heading'	: 0,
    'fix'		: False,
    'sats'		: 0,
    'knots'		: 0,
    'time'		: '00:00:00',
    'date'		: '00/00/0000',
    'alt'		: 0.0
    }
def gpsThread():
    print("Thread Running")
    global keepRunning,NMEAdata
    GPGGA = ""
    GPGSA = ""
    GPRMC = ""
    GPVTG = ""
    while not GPS.any():
        pass
    while GPS.any():
        junk = GPS.read()
        print(junk)
    myNMEA = ""
    while keepRunning:
        if GPS.any():
            myChar=GPS.read(1).decode('utf-8')
            myNMEA = myNMEA + myChar
            if myChar == '\n':
                myNMEA = myNMEA.strip()
                if myNMEA[1:6] == "GPGGA":
                    GPGGA = myNMEA
                if myNMEA[1:6] == "GPGSA":
                    GPGSA = myNMEA
                if myNMEA[1:6] == "GPRMC":
                    GPRMC = myNMEA
                if myNMEA[1:6] == "GPVTG":
                    GPVTG = myNMEA
                if GPGGA != "" and GPGSA!="" and GPRMC!="" and GPVTG!="":
                    dataLock.acquire()
                    NMEAdata = {
                        'GPGGA' : GPGGA,
                        'GPGSA' : GPGSA,
                        'GPRMC' : GPRMC,
                        'GPVTG' : GPVTG
                        }
                    dataLock.release()
                myNMEA = ""
    print("Thread Terminated Cleanly")
def parseGPS():
    readFix=int(NMEAmain['GPGGA'].split(',')[6])
    if readFix !=0:
        GPSdata['fix'] = True
        latRAW = NMEAmain['GPGGA'].split(',')[2]
        latDD = int(latRAW[0:2]) + float(latRAW[2:])/60
        if NMEAmain['GPGGA'].split(',')[3] == 'S':
            latDD = -latDD
        GPSdata['latDD']= latDD
        lonRAW=NMEAmain['GPGGA'].split(',')[4]
        lonDD=int(lonRAW[0:3]) + float(lonRAW[3:])/60
        if NMEAmain['GPGGA'].split(',')[5] == 'W':
            lonDD = -lonDD
        GPSdata['lonDD'] = lonDD
        heading = float(NMEAmain['GPRMC'].split(',')[8])
        GPSdata['heading'] = heading
        knots = float(NMEAmain['GPRMC'].split(',')[7])
        GPSdata['knots'] = knots
        sats = int(NMEAmain['GPGGA'].split(',')[7])
        GPSdata['sats'] = sats
        utcTime = NMEAmain['GPGGA'].split(',')[1]
        utcDate = NMEAmain['GPRMC'].split(',')[9]
        # utcTime = "013445.000"
        # utcDate = "010125"

        # Extract year from UTC date (format: DDMMYY), prepend '20' for full year (e.g., '25' → '2025')
        myYear = '20' + utcDate[4:]
        # Extract month from UTC date (e.g., '01' for January)
        myMonth = utcDate[2:4]
        # Extract day from UTC date (e.g., '01' for 1st)
        myDay = utcDate[0:2]
        # Calculate hours by adding UTC offset to UTC hours, convert to string
        myHours = str(int(utcTime[0:2]) + utcCorrect)
        # Extract minutes from UTC time (e.g., '34' from '013445.000')
        myMin = utcTime[2:4]
        # Extract seconds from UTC time (e.g., '45' from '013445.000')
        mySec = utcTime[4:6]

        # Define array of maximum days per month (index 0-11 for months 1-12: Jan to Dec)
        maxDays = ['31', '28', '31', '30', '31', '30', '31', '31', '30', '31', '30', '31']

        # Check if year is a leap year (simplified: divisible by 4); if so, set February to 29 days
        if int(myYear) % 4 == 0:
            maxDays[1] = '29'

        # Check if hours exceed 24 (for positive UTC offsets, e.g., UTC 22:00 + 5 = 27:00)
        if int(myHours) >= 24:
            # Subtract 24 from hours to wrap around to next day (e.g., 27 → 3)
            myHours = str(int(myHours) - 24)
            # Pad hours with leading zero if single digit (e.g., '3' → '03')
            if len(myHours) < 2:
                myHours = '0' + myHours
            # Increment day to account for crossing midnight (e.g., 30 → 31)
            myDay = str(int(myDay) + 1)
            # Check if day exceeds maximum days for the current month (e.g., June 31 > 30)
            if int(myDay) > int(maxDays[int(myMonth) - 1]):
                # Reset day to 1 for the next month
                myDay = '01'
                # Increment month (e.g., June → July)
                myMonth = str(int(myMonth) + 1)
                # Check if month exceeds 12 (e.g., December → January)
                if int(myMonth) > 12:
                    # Reset month to January
                    myMonth = '01'
                    # Increment year (e.g., 2025 → 2026)
                    myYear = str(int(myYear) + 1)
            # Pad day with leading zero if single digit (e.g., '1' → '01')
            if len(myDay) < 2:
                myDay = '0' + myDay
            # Pad month with leading zero if single digit (e.g., '7' → '07')
            if len(myMonth) < 2:
                myMonth = '0' + myMonth

        # Check if hours are negative (for negative UTC offsets, e.g., UTC 01:00 - 5 = -4)
        if int(myHours) < 0:
            # Add 24 to hours to wrap around to previous day (e.g., -4 → 20)
            myHours = str(int(myHours) + 24)
            # Pad hours with leading zero if single digit (e.g., '3' → '03')
            if len(myHours) < 2:
                myHours = '0' + myHours
            # Decrement day to account for crossing midnight backward (e.g., 01 → 00)
            myDay = str(int(myDay) - 1)
            # Check if day is less than 1 (e.g., January 1 → December 31)
            if int(myDay) < 1:
                # Decrement month (e.g., January → December)
                myMonth = str(int(myMonth) - 1)
                # Check if month is less than 1 (e.g., January → December of previous year)
                if int(myMonth) < 1:
                    # Set month to December
                    myMonth = '12'
                    # Decrement year (e.g., 2025 → 2024)
                    myYear = str(int(myYear) - 1)
                # Set day to maximum days of the new month (e.g., December → 31)
                myDay = maxDays[int(myMonth) - 1]
            # Pad day with leading zero if single digit (e.g., '1' → '01')
            if len(myDay) < 2:
                myDay = '0' + myDay
            # Pad month with leading zero if single digit (e.g., '7' → '07')
            if len(myMonth) < 2:
                myMonth = '0' + myMonth

        # Combine hours, minutes, seconds into time string (e.g., '20:34:45')
        myTime = myHours + ':' + myMin + ':' + mySec
        # Combine month, day, year into date string (e.g., '12/31/2024')
        myDate = myMonth + '/' + myDay + '/' + myYear
        # Store local time in GPSdata dictionary
        GPSdata['time'] = myTime
        # Store local date in GPSdata dictionary
        GPSdata['date'] = myDate
        GPSdata['alt'] = float(NMEAmain['GPGGA'].split(',')[9])
def dispOLED():
    dsp.fill(0)
    if GPSdata['fix'] == False:
        dsp.text("Waiting for Fix . . .",0,0)
    if GPSdata['fix'] == True:
        if screenOne==True:
            dsp.fill(0)
            dsp.text("Ultimate GPS",0,0)
            dsp.text(GPSdata['date'][0:5] + ' '+GPSdata['time'],0,16)
            dsp.text("LAT: "+str(GPSdata['latDD']),0,26)
            dsp.text("LON: "+str(GPSdata['lonDD']),0,36)
            dsp.text("SATS: "+str(GPSdata['sats']),0,46)

        if screenOne==False:
            dsp.fill(0)
            dsp.text("Ultimate GPS",0,0)
            dsp.text(GPSdata['date'][0:5] + ' '+GPSdata['time'],0,16)
            dsp.text("SPEED: "+str(GPSdata['knots'])+' Knts',0,26)
            dsp.text("HEAD: "+str(GPSdata['heading'])+'deg.',0,36)
            dsp.text("Alt: "+str(GPSdata['alt'])+' M',0,46)
    dsp.show()
butOnePin = 12
butOne = Pin(butOnePin, Pin.IN, Pin.PULL_UP)
butOneUp = 0
butOneDown = 0
butOneOld = 1

screenOne = True

def butOneIRQ(pin):
    global butOneUp,butOneDown,butOneOld,screenOne
    butOneValue = butOne.value()
    if butOneValue==0:
        butOneDown=time.ticks_ms()
    if butOneValue==1:
        butOneUp = time.ticks_ms()
    if butOneOld==1 and butOneValue==0 and butOneDown-butOneUp>50:
        screenOne = not screenOne
        print('Button One Triggered')
    butOneOld=butOneValue

butOne.irq(trigger=Pin.IRQ_FALLING | Pin.IRQ_RISING , handler = butOneIRQ)

_thread.start_new_thread(gpsThread,())
time.sleep(3)
try:
    while True:
        dataLock.acquire()
        NMEAmain = NMEAdata.copy()
        dataLock.release()
        parseGPS()
        if GPSdata['fix'] == False:
            print("Waiting for Fix . . .")
        if GPSdata['fix'] == True:
            print("Ultimate GPS Tracker Report: ")
            print(GPSdata['time'],GPSdata['date'])
            print("Lat and Lon: ",GPSdata['latDD'],GPSdata['lonDD'])
            print("Knots: ",GPSdata['knots'])
            print("Heading: ",GPSdata['heading'])
            print("Elevation: ",GPSdata['alt'])
            print("Sats: ",GPSdata['sats'])
            print()
        dispOLED()
        time.sleep(1)


except KeyboardInterrupt:
    print("\nStopping Program . . . Cleaning Up UART")
    keepRunning = False
    time.sleep(1)
    GPS.deinit()
    time.sleep(1)
    dsp.fill(0)
    dsp.show()
    print("Exited Cleanly")

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

from machine import Pin,I2C,UART

import time

import _thread

from ssd1306 import SSD1306_I2C

utcCorrect = 3

i2c2 = I2C(1, sda=Pin(2), scl=Pin(3), freq=400000)

dsp = SSD1306_I2C(128,64,i2c2)

dataLock = _thread.allocate_lock()

keepRunning = True

GPS = UART(1, baudrate=9600, tx=machine.Pin(8), rx=machine.Pin(9))

# Reset GPS

GPS.write(b'$PMTK314,-1*04\r\n')

#The following line ensures that the GPS reports the GPVTG NMEA Sentence

GPS.write(b"$PMTK314,0,1,1,1,1,1,1,0,0,0,0,0,0,0,0,0,0,0,0*28\r\n")

NMEAdata = {

'GPGGA' : "",

'GPGSA' : "",

'GPRMC' : "",

'GPVTG' : ""

}

GPSdata = {

'latDD' : 0,

'lonDD' : 0,

'heading' : 0,

'fix' : False,

'sats' : 0,

'knots' : 0,

'time' : '00:00:00',

'date' : '00/00/0000',

'alt' : 0.0

}

def gpsThread():

print("Thread Running")

global keepRunning,NMEAdata

GPGGA = ""

GPGSA = ""

GPRMC = ""

GPVTG = ""

while not GPS.any():

pass

while GPS.any():

junk = GPS.read()

print(junk)

myNMEA = ""

while keepRunning:

if GPS.any():

myChar=GPS.read(1).decode('utf-8')

myNMEA = myNMEA + myChar

if myChar == '\n':

myNMEA = myNMEA.strip()

if myNMEA[1:6] == "GPGGA":

GPGGA = myNMEA

if myNMEA[1:6] == "GPGSA":

GPGSA = myNMEA

if myNMEA[1:6] == "GPRMC":

GPRMC = myNMEA

if myNMEA[1:6] == "GPVTG":

GPVTG = myNMEA

if GPGGA != "" and GPGSA!="" and GPRMC!="" and GPVTG!="":

dataLock.acquire()

NMEAdata = {

'GPGGA' : GPGGA,

'GPGSA' : GPGSA,

'GPRMC' : GPRMC,

'GPVTG' : GPVTG

}

dataLock.release()

myNMEA = ""

print("Thread Terminated Cleanly")

def parseGPS():

readFix=int(NMEAmain['GPGGA'].split(',')[6])

if readFix !=0:

GPSdata['fix'] = True

latRAW = NMEAmain['GPGGA'].split(',')[2]

latDD = int(latRAW[0:2]) + float(latRAW[2:])/60

if NMEAmain['GPGGA'].split(',')[3] == 'S':

latDD = -latDD

GPSdata['latDD']= latDD

lonRAW=NMEAmain['GPGGA'].split(',')[4]

lonDD=int(lonRAW[0:3]) + float(lonRAW[3:])/60

if NMEAmain['GPGGA'].split(',')[5] == 'W':

lonDD = -lonDD

GPSdata['lonDD'] = lonDD

heading = float(NMEAmain['GPRMC'].split(',')[8])

GPSdata['heading'] = heading

knots = float(NMEAmain['GPRMC'].split(',')[7])

GPSdata['knots'] = knots

sats = int(NMEAmain['GPGGA'].split(',')[7])

GPSdata['sats'] = sats

utcTime = NMEAmain['GPGGA'].split(',')[1]

utcDate = NMEAmain['GPRMC'].split(',')[9]

# utcTime = "013445.000"

# utcDate = "010125"

# Extract year from UTC date (format: DDMMYY), prepend '20' for full year (e.g., '25' → '2025')

myYear = '20' + utcDate[4:]

# Extract month from UTC date (e.g., '01' for January)

myMonth = utcDate[2:4]

# Extract day from UTC date (e.g., '01' for 1st)

myDay = utcDate[0:2]

# Calculate hours by adding UTC offset to UTC hours, convert to string

myHours = str(int(utcTime[0:2]) + utcCorrect)

# Extract minutes from UTC time (e.g., '34' from '013445.000')

myMin = utcTime[2:4]

# Extract seconds from UTC time (e.g., '45' from '013445.000')

mySec = utcTime[4:6]

# Define array of maximum days per month (index 0-11 for months 1-12: Jan to Dec)

maxDays = ['31', '28', '31', '30', '31', '30', '31', '31', '30', '31', '30', '31']

# Check if year is a leap year (simplified: divisible by 4); if so, set February to 29 days

if int(myYear) % 4 == 0:

maxDays[1] = '29'

# Check if hours exceed 24 (for positive UTC offsets, e.g., UTC 22:00 + 5 = 27:00)

if int(myHours) >= 24:

# Subtract 24 from hours to wrap around to next day (e.g., 27 → 3)

myHours = str(int(myHours) - 24)

# Pad hours with leading zero if single digit (e.g., '3' → '03')

if len(myHours) < 2:

myHours = '0' + myHours

# Increment day to account for crossing midnight (e.g., 30 → 31)

myDay = str(int(myDay) + 1)

# Check if day exceeds maximum days for the current month (e.g., June 31 > 30)

if int(myDay) > int(maxDays[int(myMonth) - 1]):

# Reset day to 1 for the next month

myDay = '01'

# Increment month (e.g., June → July)

myMonth = str(int(myMonth) + 1)

# Check if month exceeds 12 (e.g., December → January)

if int(myMonth) > 12:

# Reset month to January

myMonth = '01'

# Increment year (e.g., 2025 → 2026)

myYear = str(int(myYear) + 1)

# Pad day with leading zero if single digit (e.g., '1' → '01')

if len(myDay) < 2:

myDay = '0' + myDay

# Pad month with leading zero if single digit (e.g., '7' → '07')

if len(myMonth) < 2:

myMonth = '0' + myMonth

# Check if hours are negative (for negative UTC offsets, e.g., UTC 01:00 - 5 = -4)

if int(myHours) < 0:

# Add 24 to hours to wrap around to previous day (e.g., -4 → 20)

myHours = str(int(myHours) + 24)

# Pad hours with leading zero if single digit (e.g., '3' → '03')

if len(myHours) < 2:

myHours = '0' + myHours

# Decrement day to account for crossing midnight backward (e.g., 01 → 00)

myDay = str(int(myDay) - 1)

# Check if day is less than 1 (e.g., January 1 → December 31)

if int(myDay) < 1:

# Decrement month (e.g., January → December)

myMonth = str(int(myMonth) - 1)

# Check if month is less than 1 (e.g., January → December of previous year)

if int(myMonth) < 1:

# Set month to December

myMonth = '12'

# Decrement year (e.g., 2025 → 2024)

myYear = str(int(myYear) - 1)

# Set day to maximum days of the new month (e.g., December → 31)

myDay = maxDays[int(myMonth) - 1]

# Pad day with leading zero if single digit (e.g., '1' → '01')

if len(myDay) < 2:

myDay = '0' + myDay

# Pad month with leading zero if single digit (e.g., '7' → '07')

if len(myMonth) < 2:

myMonth = '0' + myMonth

# Combine hours, minutes, seconds into time string (e.g., '20:34:45')

myTime = myHours + ':' + myMin + ':' + mySec

# Combine month, day, year into date string (e.g., '12/31/2024')

myDate = myMonth + '/' + myDay + '/' + myYear

# Store local time in GPSdata dictionary

GPSdata['time'] = myTime

# Store local date in GPSdata dictionary

GPSdata['date'] = myDate

GPSdata['alt'] = float(NMEAmain['GPGGA'].split(',')[9])

def dispOLED():

dsp.fill(0)

if GPSdata['fix'] == False:

dsp.text("Waiting for Fix . . .",0,0)

if GPSdata['fix'] == True:

if screenOne==True:

dsp.fill(0)

dsp.text("Ultimate GPS",0,0)

dsp.text(GPSdata['date'][0:5] + ' '+GPSdata['time'],0,16)

dsp.text("LAT: "+str(GPSdata['latDD']),0,26)

dsp.text("LON: "+str(GPSdata['lonDD']),0,36)

dsp.text("SATS: "+str(GPSdata['sats']),0,46)

if screenOne==False:

dsp.fill(0)

dsp.text("Ultimate GPS",0,0)

dsp.text(GPSdata['date'][0:5] + ' '+GPSdata['time'],0,16)

dsp.text("SPEED: "+str(GPSdata['knots'])+' Knts',0,26)

dsp.text("HEAD: "+str(GPSdata['heading'])+'deg.',0,36)

dsp.text("Alt: "+str(GPSdata['alt'])+' M',0,46)

dsp.show()

butOnePin = 12

butOne = Pin(butOnePin, Pin.IN, Pin.PULL_UP)

butOneUp = 0

butOneDown = 0

butOneOld = 1

screenOne = True

def butOneIRQ(pin):

global butOneUp,butOneDown,butOneOld,screenOne

butOneValue = butOne.value()

if butOneValue==0:

butOneDown=time.ticks_ms()

if butOneValue==1:

butOneUp = time.ticks_ms()

if butOneOld==1 and butOneValue==0 and butOneDown-butOneUp>50:

screenOne = not screenOne

print('Button One Triggered')

butOneOld=butOneValue

butOne.irq(trigger=Pin.IRQ_FALLING | Pin.IRQ_RISING , handler = butOneIRQ)

_thread.start_new_thread(gpsThread,())

time.sleep(3)

try:

while True:

dataLock.acquire()

NMEAmain = NMEAdata.copy()

dataLock.release()

parseGPS()

if GPSdata['fix'] == False:

print("Waiting for Fix . . .")

if GPSdata['fix'] == True:

print("Ultimate GPS Tracker Report: ")

print(GPSdata['time'],GPSdata['date'])

print("Lat and Lon: ",GPSdata['latDD'],GPSdata['lonDD'])

print("Knots: ",GPSdata['knots'])

print("Heading: ",GPSdata['heading'])

print("Elevation: ",GPSdata['alt'])

print("Sats: ",GPSdata['sats'])

print()

dispOLED()

time.sleep(1)

except KeyboardInterrupt:

print("\nStopping Program . . . Cleaning Up UART")

keepRunning = False

time.sleep(1)

GPS.deinit()

time.sleep(1)

dsp.fill(0)

dsp.show()

print("Exited Cleanly")

Technology Tutorials

Python PyQt5 Magnetometer Calibration Program

Python Program to Calculate Distance and Heading Between Two GPS Points Using Haversine Formula

Calculating Roll, Pitch and Yaw from Gyros on Our Arduino MPU6050 IMU Project

Using Arduino and MPU6050 to Measure Rotational Velocity with the Gyros

Portable Power for Your Raspberry Pi Pico W Project Using the Sunfounder Breadvolt

Making The World a Better Place One High Tech Project at a Time. Enjoy!
